GreenFeed - Small Animal

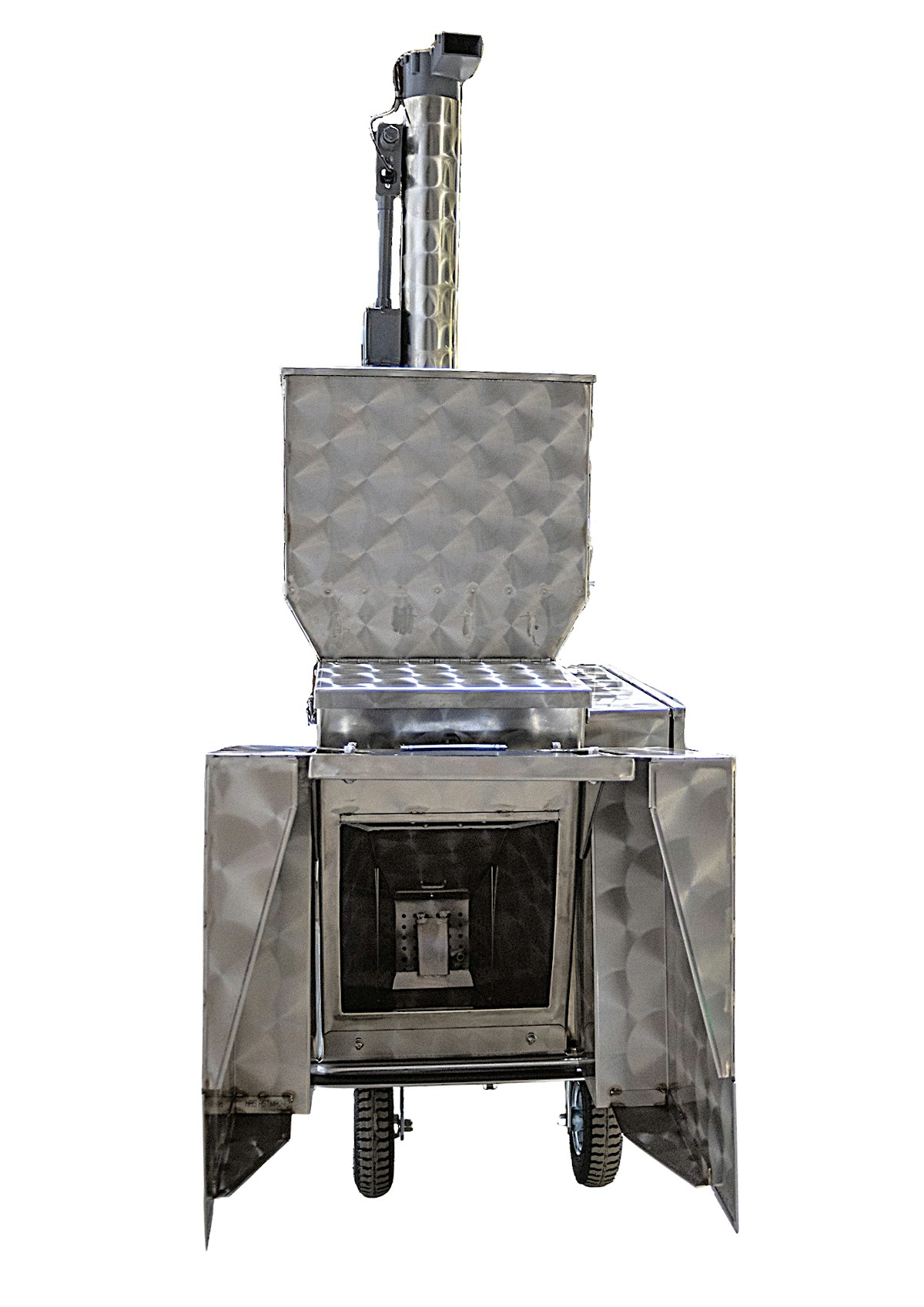

The small animal GreenFeed is a turn-key system designed to measure emissions from individual small animals, such as sheep. The measures gas fluxes of Methane (CH4), Carbon Dioxide (CO2), and optionally, Oxygen (O2), and Hydrogen (H2) from individual animals. It is also possible to aggregate emissions data from individual animals and determine herd averages. The system is typically configured to offer a small amount of pelleted bait attractant to entice the animals to visit multiple times per day. The gas emissions data is logged and then automatically processed allowing the user to easily access a summarized report of calculated fluxes.Request More Information and Pricing
The small animal system is typically used for small ruminant animals, sheep and goats for example. The system could be used to measure metabolic gases from other large animal species. It will measure CO2 flux accurately to a level of greater than 1,000 g/d and CH4 flux greater than about 60 g/d.
This unit requires a pelletized feed (< 7 mm in diameter) to be used. Any type of pelletized feed can be used, with some applications using pelletized grass and alfalfa, and others using a concentrate mix. Typically the amount of bait attractant used is about 1-1.5 kg per animal per day, however in some installations as little as 200 grams per animal per day. In other applications animals are given as much as 8 kg per animal per day. The amount of feed used is uniquely configurable for each animal.
In normal operating conditions, about 20 animals per day can be measured per GreenFeed, however this varies depending on the animals, the size of the pen or pasture, the quantity of feed, and the objectives.
- Gas Regulators:
Each unit is fitted with its one set of gas regulators.
The gas regulators reduce the pressure on high pressure gas tanks in other applications.
The manual calibration option (without auto-calibration) requires two gas regulators to connect to the standard gas calibration tanks. Please specify in your order if you wish to purchase two of these optional regulators.
- Mass Scale:
The mass scale is used for the CO2 recovery testing. It is capable of weighing up to 5 kg at 0.1 g increments.
- Tool Kit:
Each unit is provided with the US standard tools for maintenance of your GreenFeed unit.
The auto-calibration system allows the user to remotely and automatically calibrate the methane and carbon dioxide concentration sensors. For the auto-calibration, two compressed gas tanks are needed – a zero gas tank and a span gas tank. Special gas regulators are connected to the gas cylinders and a sample line from each tank is plumbed to the gas sensor boxes. The system is configured to periodically draw gas first from the zero tank, then from the span tank. Typically this calibration is automatically performed once per once a day.
GreenFeed has two standard methods of connectivity to the Internet:
If Wi-Fi is selected, a Wi-Fi adapter is installed that connects to an external Wi-Fi networks. Our technical staff will work with you to ensure the correct connection is used.
The advantage of a Wi-Fi connection is that it is wireless and usually data transmission is free. The disadvantage is that a Wi-Fi network with the correct permissions must be available in every location that uses the instrument.
If a cellular modem is used, a special modem is installed into the instrument that allows data to be sent over a cellular network. The user is responsible to supply a “SIM” card from their local cellular provider. The modem is then configured to operate with the local cellular network. The user will be responsible to pay a monthly data fee to the cellular carrier – usually the cost is 30 – 50 USD per month.
The advantage of the cellular modem is that it is portable, the system can be used at any location with a cellular signal. The disadvantage is the user will be responsible for the monthly data charges to their local provider, and the connection is typically not as fast as other connection types.
*At extra cost, the system can be configured to work with both connection types. Please specify if you need the flexibility to choose between options.
Online User Friendly Interface: We have developed an easy to user interface that an be accessed at all times, were you can view and control your systems in real-time. You do not have to be on-site to see the results. View emission patterns from individual animals as they are happening. This technology is light-years ahead of all other emission monitoring methodologies. It's like having an entire experimental laboratory inside your barn. The GreenFeed Emissions Monitoring system can be configured to dispense a specific diet to each individual animal. The rations are synchronized across multiple systems so your animals will get the correct amount of feed, no matter where they are.
Easily monitor and control your GreenFeed system from anywhere in the world:
Quickly determine how often each animal is visiting a system. You can easily distinguish which of your cattle are using GreenFeed and how often. You can even be alerted if an animal has not visited.
Service and Maintenance Contract
- Customer Portal Access – Access to real time raw and processed data via C-Lock’s cloud-based customer portal.
- Software Updates – Includes Updates to online software and customer portal capabilities, from time to time.
- Support – A support line to contact C-Lock for technical questions or to report problems.
- Data access – Access to processed and raw data via download or via customer portal.
- Ongoing Monitoring and Protocol Design Assistance.
- Repairs. C-Lock will cover parts and repair of Hardware that has failed due to normal wear and tear outside the applicable warranty period
All units are sold with annual service and maintenance contract. Multiple year contracts are available.
